Porting the stylus path to KOReader

1. Why
2. Three repos, three patches
3. What the koreader-base patch is fixing
4. What the launcher patch is adding
5. Verification
6. Caveats

---

Why

KOReader is the de-facto third-party ebook reader for e-ink devices. Its pencil.koplugin adds handwriting annotation on top of any document — but on the DPT-CP1 it suffers from the same latency problem stock Android apps do: every stroke triggers a slow full refresh, because nothing in KOReader knows about Sony’s EPD waveform controller or DHW.

The work in patches/ ports the same two primitives sony_draw uses (EpdHelper reflection and DirectHandwriting) into KOReader, so the pencil plugin draws at native latency on the DPT-CP1 with no changes to the plugin’s own logic.

The full step-by-step is in patches/README.md; this page is the why-and-how-it-fits-together overview.

Three repos, three patches

KOReader’s Android build is a stack of submodules. The fix has to touch three layers, and then the bottom layer reflects/JNIs into the DPT-CP1’s own system files:

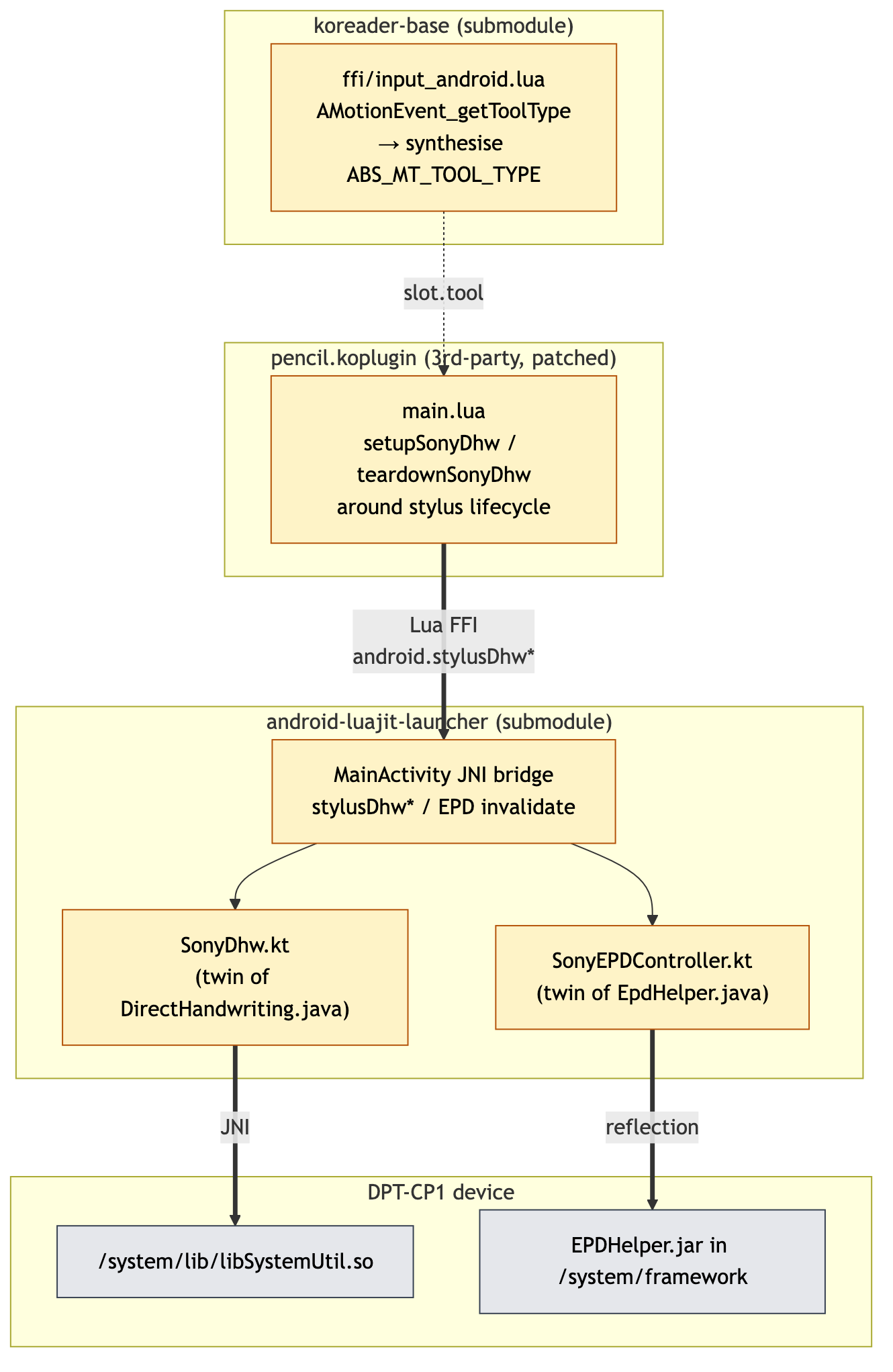

Yellow boxes are patched / new code; grey boxes are device-resident vendor files we link against. Source: docs/diagrams/koreader-port.mmd.

The pieces line up one-to-one with sony_draw’s Java:

sony_draw (this repo)	KOReader equivalent
EpdHelper.java (reflection into lockCanvas(Rect,int))	SonyEPDController.kt (reflection into View.invalidate(Rect,int))
EinkMode.java constants	EPDController.java constants in launcher
DirectHandwriting.java	SonyDhw.kt
SystemUtil JNI binding	same — copy-paste, same package path landmine applies

What the koreader-base patch is fixing

KOReader handles stylus events on Kobo through the kernel’s input device, where EV_ABS / ABS_MT_TOOL_TYPE distinguishes pen from eraser. The pencil plugin checks slot.tool to decide whether to draw or erase.

On Android there’s no EV_ABS / ABS_MT_TOOL_TYPE — instead the equivalent information is on each AMotionEvent’s pointer, retrievable via AMotionEvent_getToolType(). KOReader’s Android input adapter (ffi/input_android.lua) wasn’t pulling that field, so slot.tool was always unset, and the plugin’s eraser detection never fired.

The koreader-base commit calls AMotionEvent_getToolType() per pointer and synthesizes a fake ABS_MT_TOOL_TYPE event before the position events. The translation matches the Elan-panel convention:

• Android TOOL_TYPE_STYLUS (2) → ABS value 1 (pen)
• Android TOOL_TYPE_ERASER (4) → ABS value 2 (eraser)
• everything else → 0 (finger)

After that, every Kobo-side codepath that consumes slot.tool works unchanged on Android.

What the launcher patch is adding

android-luajit-launcher is KOReader’s Android shell — it owns the Activity, the SurfaceView, and the JNI bridge to the Lua runtime. The patch adds:

• device/sony/SonyDhw.kt — the Kotlin twin of this repo’s DirectHandwriting.java. Reflection-based, fail-soft.
• device/epd/sony/SonyEPDController.kt — implements KOReader’s EPDInterface using View.invalidate(Rect, int) (the overload the DPT-CP1’s framework exposes). The previous routing for DeviceInfo.Id.SONY_CP1 pointed at the Nook/NTX controller, which uses a different invalidate signature and never worked.
• Five JNI-exposed methods (stylusDhwAvailable, stylusDhwEnable, stylusDhwDisable, stylusDhwSetArea, stylusDhwClearArea) plus matching android.lua FFI cdefs.

The plugin patch then just calls those from Lua at the right moments:

function PencilLoader:setupStylusCallback()
    -- ...existing setup...
    if android and android.stylusDhwAvailable and android.stylusDhwAvailable() then
        setupSonyDhw()
    end
end

Gated on android.stylusDhwAvailable(), so the same patched plugin still runs unchanged on Kobo, Kindle, and SDL builds.

Verification

After install, with KOReader running on the DPT-CP1:

adb logcat | grep -E 'SonyDhw|EPD|Pencil'

Expected on plugin enable:

I/SonyDhw: SonyDhw available
I/EPD: Using Sony DPT (EPDHelper) driver
I/SonyDhw: addDhwArea Rect(...) penPx=... rot=0
I/Pencil: Sony DHW enabled screen=1404 x 1872 pen=3 rot=0

End-to-end latency drops from “annoying” to “indistinguishable from sony_draw.”

Caveats

• The two submodule commits (in android-luajit-launcher and koreader-base) live on detached HEAD in your local clone. KOReader’s superproject pins specific revisions, so to make the build stick you either push the commits to a fork and bump the submodule SHA, or accept that a git submodule update will clobber them.
• Rotation is read once at setupSonyDhw(). Rotating mid-session needs a tear-down + re-setup. Out of scope for the initial port.
• libSystemUtil.so is armeabi-v7a only on the DPT-CP1. The launcher’s abiFilters doesn’t need to change because Sony only shipped 32-bit ARM.
